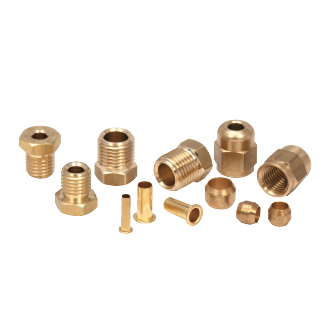

The fitting fitting is used to connect to oil pipes and grease pipes of 4mm, 6mm
The fitting fitting is used to connect to oil pipes and grease pipes of 4mm, 6mm
| Model | Part Number | Tube outer diameter (φ) | T | d1（φ） | d2（φ） | B |
|---|---|---|---|---|---|---|
| CN-4 | 106251 | 4 | M8×1 | 4.2 | 10 | 10 |
| CN-4-B | 166268 | — | ||||
| CN-6 | 206251 | 6 | M10×1 | 6.2 | 12 | 12 |
●Material：Brass（C3604）
CN-4-B is a dedicated part.
| Model | Part Number | Tube outer diameter (φ) | T | d（φ） | L1 | L2 | B |
|---|---|---|---|---|---|---|---|
| CB-4-8 | 106253 | 4 | M8×1 | 4.2 | 11.6 | 4 | 8 |
| CB-4-B | 166253 | 20 | 12 | ||||
| CB-6 | 206252 | 6 | M10×1 | 6.2 | 12.5 | 4 | 10 |
| CB-6-B | 166255 | 20 | 12 | ||||
| CB-8 | 207252 | 8 | M14×1.5 | 8.2 | 16 | 4.5 | 14 |
●Material：Brass（C3604）
CB-4-B and CB-6-B are dedicated parts.
| Model | Part Number | Tube outer diameter (φ) | d1（φ） | d2（φ） | L |
|---|---|---|---|---|---|
| CS-4 | 106254 | 4 | 6 | 4.1 | 5 |
| CS-6 | 206254 | 6 | 8 | 6.1 | 6 |
| CS-8 | 207254 | 8 | 10 | 8.1 | 6.5 |
●Material：Brass（C3604）
| Model | Part Number | Tube outer diameter (φ) | d1（φ） | d2（φ） |
|---|---|---|---|---|
| TI-4 | 106271 | 4 | 3.8 | 2.5 |
| TI-6 | 206271 | 6 | 5.8 | 4 |
| TI-8 | 207271 | 8 | 7.8 | 6 |
●Material：Brass（C2680）
